Schluter® DIADEC Tile Wall | Countertop Edging

View Colors

Search Clear

Product color is as described under 'Sizes and Prices'

Sizes & Prices (18 items)

Description /Size	Style	Price	Quantity
5/16"H x 98.5"L, Profile With Anchoring Leg	Satin Anodized Aluminum	~~$43.89- each~~ $39.50- each	Add Add
5/16"H x 98.5"L, Profile With Anchoring Leg	Polished Chrome Anodized Aluminum	~~$72.94- each~~ $65.65- each	Add Add
5/16"H x 98.5"L, Profile With Anchoring Leg	Brushed Chrome Anodized Aluminum	~~$55.15- each~~ $49.64- each	Add Add

3/8"H x 98.5"L, Profile With Anchoring Leg	Satin Anodized Aluminum	~~$44.46- each~~ $40.01- each	Add Add
3/8"H x 98.5"L, Profile With Anchoring Leg	Polished Chrome Anodized Aluminum	~~$73.68- each~~ $66.31- each	Add Add
3/8"H x 98.5"L, Profile With Anchoring Leg	Brushed Chrome Anodized Aluminum	~~$55.48- each~~ $49.93- each	Add Add

7/16"H x 98.5"L, Profile With Anchoring Leg	Satin Anodized Aluminum	~~$45.83- each~~ $41.25- each	Add Add
7/16"H x 98.5"L, Profile With Anchoring Leg	Polished Chrome Anodized Aluminum	~~$74.23- each~~ $66.81- each	Add Add
7/16"H x 98.5"L, Profile With Anchoring Leg	Brushed Chrome Anodized Aluminum	~~$56.04- each~~ $50.44- each	Add Add

1/2"H x 98.5"L, Profile With Anchoring Leg	Satin Anodized Aluminum	~~$46.74- each~~ $42.07- each	Add Add
1/2"H x 98.5"L, Profile With Anchoring Leg	Polished Chrome Anodized Aluminum	~~$74.78- each~~ $67.30- each	Add Add
1/2"H x 98.5"L, Profile With Anchoring Leg	Brushed Chrome Anodized Aluminum	~~$56.61- each~~ $50.95- each	Add Add

98.5"L, Profile Without Anchoring Leg	Satin Anodized Aluminum	~~$49.42- each~~ $44.48- each	Add Add
98.5"L, Profile Without Anchoring Leg	Polished Chrome Anodized Aluminum	~~$65.13- each~~ $58.62- each	Add Add
98.5"L, Profile Without Anchoring Leg	Brushed Chrome Anodized Aluminum	~~$68.17- each~~ $61.35- each	Add Add

90 Degree Outside Corner	Satin Anodized Aluminum	~~$64.60- each~~ $58.14- each	Add Add
90 Degree Outside Corner	Polished Chrome Anodized Aluminum	~~$64.60- each~~ $58.14- each	Add Add
90 Degree Outside Corner	Brushed Chrome Anodized Aluminum	~~$64.60- each~~ $58.14- each	Add Add

Description

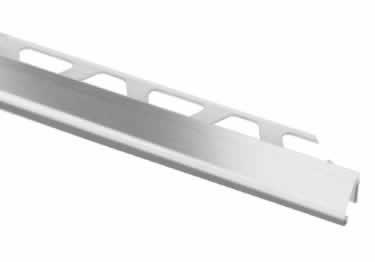

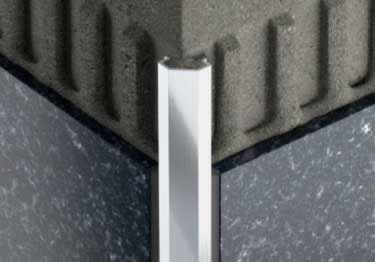

Schluter®- DIADEC finishing edge protection profiles for wall and countertop tile edge protection is available in aluminum. The reveal on the DIADEC profile forms a 45 degree beveled edge. The integrated joint spacer featured on DIADEC profiles creates defined joint cavities between the tile and profile. DIADEC profiles are available with or without an anchoring leg. Models without an anchoring leg can be secured to tiles at least ¼" thick by filling the open cavity with thin-set mortar; great for retrofit applications!

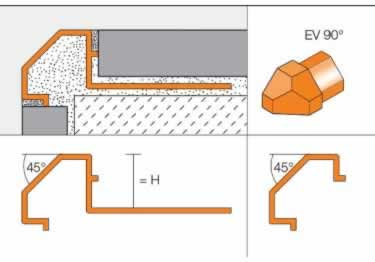

Reveal forms a 45° beveled edge

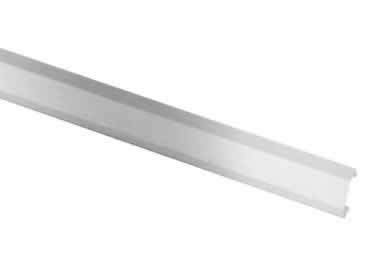

Select from two models - with or without an anchoring leg
Great for protecting tile edges on walls and countertops in both new and retrofit applications.
Profile Length: 98.5"
Height: 5/16", 3/8", 7/16",1/2"

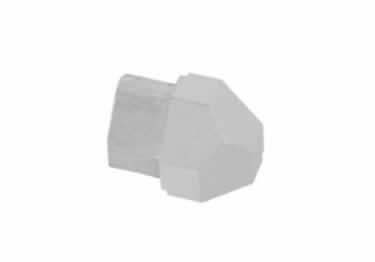

Profiles and 90° outside corners available
Available in: satin anodized aluminum, polished chrome anodized aluminum, brushed chrome anodized aluminum

Specifications

Availability:

DIADEC is available in: satin anodized aluminum, polished chrome anodized aluminum, and brushed chrome anodized aluminum
Profiles and outside corners available
Profile Length: 98.5"
Height: Height: 5/16", 3/8", 7/16", 1/2"

Construction Details:

DIADEC reveal forms a 45° beveled edge
Great for protecting tile wall and countertop edges in new or retrofit applications
DIADEC in anodized aluminum features an integrated joint spacer that establishes a defined joint cavity between the profile and the tile.
Models with and without anchoring leg available
Clean with common household cleaning agents. Note: Do not use abrasive cleaning agents. Cleaning agents must be free of hydrochloric and hydrofluoric acid.
Resistant to fungi and mold
Profile length: 98.5"
Available heights: 5/16", 3/8", 7/16", 1/2"
DIADEC in anodized aluminum is available in: satin, polished and brushed chrome
Profiles and outside 90° corners available
