Fire Rated Access Doors | Uninsulated Exposed Flange by Babcock-Davis - #A1374

out of



Sizes/Designs Shown Above i

Fire Rated Access Doors | Uninsulated Exposed Flange by Babcock-Davis - #A1374

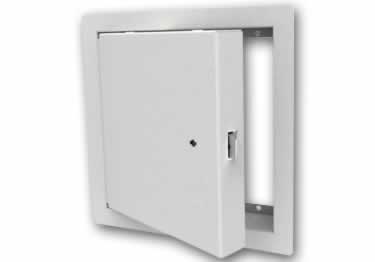

Uninsulated Exposed Flange Fire Rated Access Doors provide access through openings in fire-rated vertical surfaces. Designed with minimal sight line for concealed appearance. Strong, 14 gauge cold rolled steel access door with 16 gauge cold rolled steel frame construction. UL Listed "B" for 1-1/2 hours.

View Colors

Product color is as described under 'Sizes and Prices'

Sizes & Prices (33 items)

Description /Size Style Options Price Quantity
8"x8", Knurled Knob/ Knurled Knob/ Key Operated Latch Bolt
#UTK0808
$162.26- each $146.03- each
12"x12", Knurled Knob/ Key Operated Latch Bolt
#UTK1212
$218.06- each $196.25- each
14"x14", Knurled Knob/ Key Operated Latch Bolt
#UTK1414
$189.83- each $170.85- each
16"x16", Knurled Knob/ Key Operated Latch Bolt
#UTK1616
$205.57- each $185.01- each
18"x18", Knurled Knob/ Key Operated Latch Bolt
#UTK1818
$282.85- each $254.57- each
24"x24", Knurled Knob/ Key Operated Latch Bolt
#UTK2424
$380.06- each $342.05- each
22"x30", Knurled Knob/ Key Operated Latch Bolt *
#UTK2230
$301.56- each $271.40- each
22"x36", Knurled Knob/ Key Operated Latch Bolt *
#UTK2236
$380.34- each $342.31- each
30"x30", Knurled Knob/ Key Operated Latch Bolt *
#UTK3030
$400.06- each $360.05- each
24"x36", Knurled Knob/ Key Operated Latch Bolt *
#UTK2436
$400.06- each $360.05- each
36"x36", Knurled Knob/ Key Operated Latch Bolt *
#UTK3636
$557.62- each $501.86- each

8"x8", Mortise Lock Preparation - lock not included
#UTM0808
$224.55- each $202.10- each
12"x12", Mortise Lock Preparation - lock not included
#UTM1212
$248.38- each $223.54- each
14"x14", Mortise Lock Preparation - lock not included
#UTM1414
$252.10- each $226.89- each
16"x16", Mortise Lock Preparation - lock not included
#UTM1616
$267.86- each $241.07- each
18"x18", Mortise Lock Preparation - lock not included
#UTM1818
$410.38- each $369.34- each
24"x24", Mortise Lock Preparation - lock not included
#UTM2424
$332.32- each $299.09- each
22"x30", Mortise Lock Preparation - lock not included *
#UTM2230
$363.84- each $327.46- each
22"x36", Mortise Lock Preparation - lock not included *
#UTM2236
$442.63- each $398.37- each
30"x30", Mortise Lock Preparation - lock not included *
#UTM3030
$462.33- each $416.10- each
24"x36", Mortise Lock Preparation - lock not included *
#UTM2436
$462.33- each $416.10- each
36"x36", Mortise Lock Preparation - lock not included *
#UTM3636
$619.91- each $557.92- each

8"x8", Mortise Lock
#UTM0808-1204
$286.81- each $258.13- each
12"x12", Mortise Lock
#UTM1212-1204
$303.96- each $273.56- each
14"x14", Mortise Lock
#UTM1414-1204
$314.38- each $282.94- each
16"x16", Mortise Lock
#UTM1616-1204
$330.15- each $297.14- each
18"x18", Mortise Lock
#UTM1818-1204
$343.40- each $309.06- each
24"x24", Mortise Lock
#UTM2424-1204
$394.60- each $355.14- each
22"x30", Mortise Lock *
#UTM2230-1204
$426.13- each $383.52- each
22"x36", Mortise Lock *
#UTM2236-1204
$504.90- each $454.41- each
30"x30", Mortise Lock *
#UTM3030-1204
$524.63- each $472.17- each
24"x36", Mortise Lock *
#UTM2436-1204
$524.63- each $472.17- each
36"x36", Mortise Lock *
#UTM3636-1204
$682.20- each $613.98- each

Description

Uninsulated Exposed Flange Fire Rated Access Doors provide access through openings in fire-rated vertical surfaces. Designed with minimal sight line for concealed appearance. Strong, 14 gauge cold rolled steel access door with 16 gauge cold rolled steel frame construction. UL Listed "B" for 1-1/2 hours.

  • 14-gauge cold rolled steel door
  • 16-gauge cold rolled steel frame
  • Flush continuous piano hinge
  • White powder paint finish
  • Flange: 1" Exposed Flange

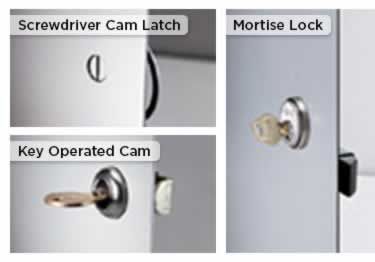

  • Latch Options: Knurled knob/Key Operated Latch Bolt, Mortise Lock Preparation Only (Lock not included), Mortise
  • Preparation with Mortise Lock

Specifications

Availability:

  • Sizes: 8''x8'', 12''x12'', 14''x14'', 16''x16'', 18''x18'', 24''x24'', 22''x30'', 22''x36'', 30''x30'', 24''x36'', 36''x36''
  • Flange Options: 1" Exposed Flange
  • Latch Options: Knurled knob/Key Operated Latch Bolt, Mortise Lock Preparation Only (Lock not included), Mortise
  • Preparation with Mortise Lock

Construction Details:

  • 14-gauge cold rolled steel door
  • Latch Options: Knurled knob/Key Operated Latch Bolt, Mortise Lock Preparation 1-1/8" Only (Lock not included), Mortise
  • Preparation with Mortise Lock
  • 16-gauge cold rolled steel frame
  • Flush continuous piano hinge
  • White powder paint finish
  • Orientation: vertical only
  • UL Listed "B" label for 1.5 hours
